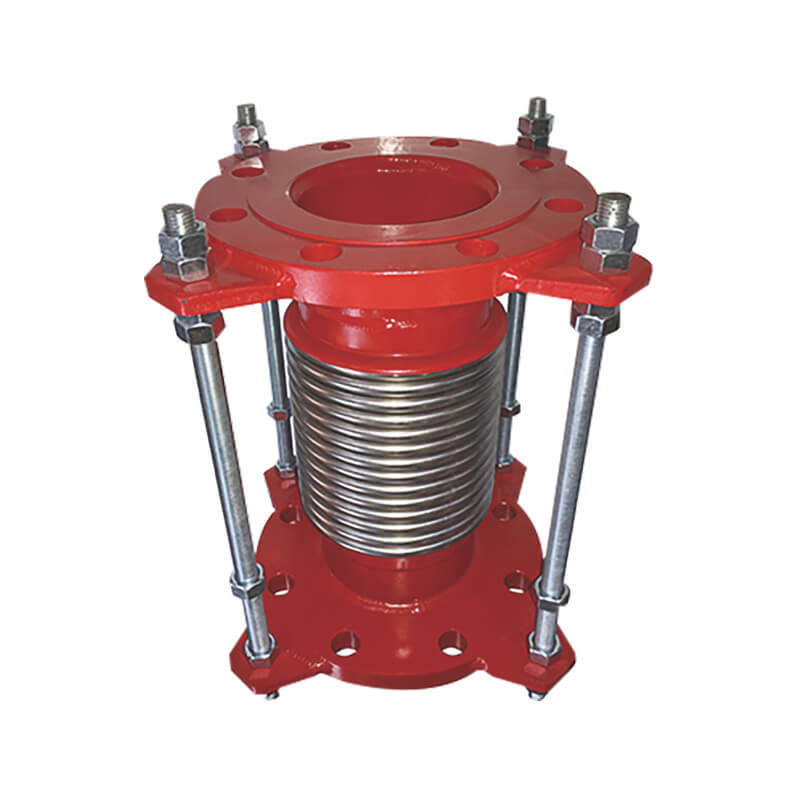

The Axial Stainless Steel Flexible Joint is engineered to restrain the full bellows pressure thrust during normal operation. It is a robust, flexible solution for piping systems, effectively absorbing vibration and shock, minimizing noise, and accommodating thermal or mechanical misalignment. Ideal for high-performance applications requiring reliability and compliance.
Key Features:
- Continuously restrains full bellows pressure thrust
- Absorbs vibration and shock to protect piping system
- Reduces operational noise
- Compensates for thermal and structural misalignment
- Constructed from high-quality stainless steel
- Certificate: FM Approved
- Standard: EJMA compliant
- Connection Type: Flanged (ANSI B16.5 Class 150, EN 1092-1 PN16)
- Maximum Temperature: 107°C
- Working Pressure: 230 / 300 psi (as per FM)
- Surface Finish: Available in Red, Blue, or Green painting
