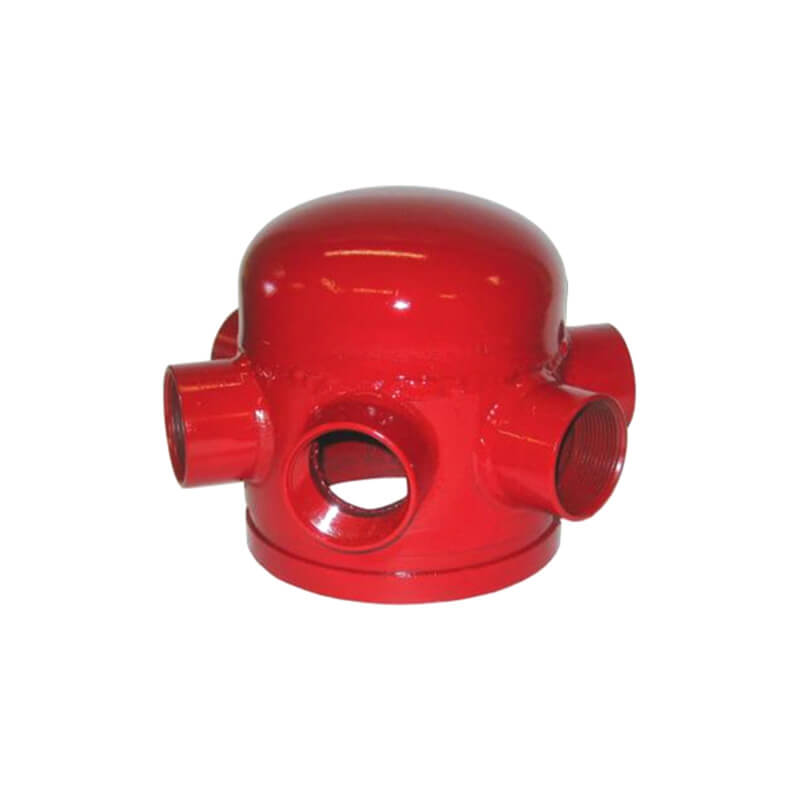

The Fire Pump Test Header (Without Valve) is a key component in fire protection systems, used to verify the performance of fire pumps by allowing water to be discharged directly to the exterior during flow testing. Installed on the building façade or pump room wall, it connects to the fire pump discharge line and enables accurate flow measurement in compliance with NFPA 20 standards.
This version of the test header comes without integrated control valves, offering flexibility to connect with remotely located valves or systems based on design requirements. It is suitable for use with hose connections, flow meters, or test nozzles.
Key Features:
Multiple outlets (typically 2, 3, 4, or more) for fire hose connections
Compatible with BS336, Storz, NST/NH, or custom coupling types
Designed for external or flush wall mounting
Fabricated from galvanized steel, stainless steel, or epoxy-coated carbon steel
Available in sizes such as 2.5” outlets, with grooved or flanged inlets
Allows performance testing without introducing water into the system piping
Corrosion-resistant and designed for outdoor exposure
Complies with NFPA 20 and local fire code requirements
