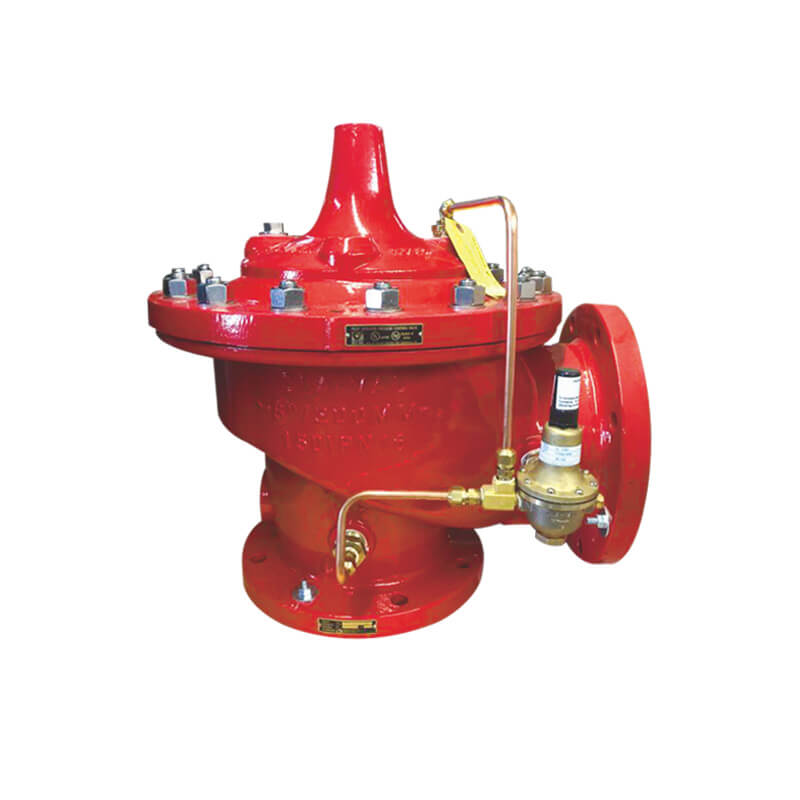

The Flanged Angle Type Pressure Reducing Valve is a pilot-operated control valve with an angle body design, engineered for use in sprinkler and standpipe systems. Featuring flanged connections, it maintains a consistent, reduced outlet pressure regardless of variations in inlet pressure or flow rate.
Key Features:
- Certification: UL Listed
- Standards: UL 1739, NFPA 13, NFPA 14
- Connection: Flanged (ANSI B16.42 Class 150 / 300)
- Adjustment Range: 50–175 psi / 30–165 psi
- Max Temperature: 82°C (water)
- Working Pressure: 250 / 300 psi
- Surface Finish: FBE coating as per AWWA C550
- Application: Sprinkler and standpipe systems
- Design: Angle type for efficient pressure regulation and space-saving installation
