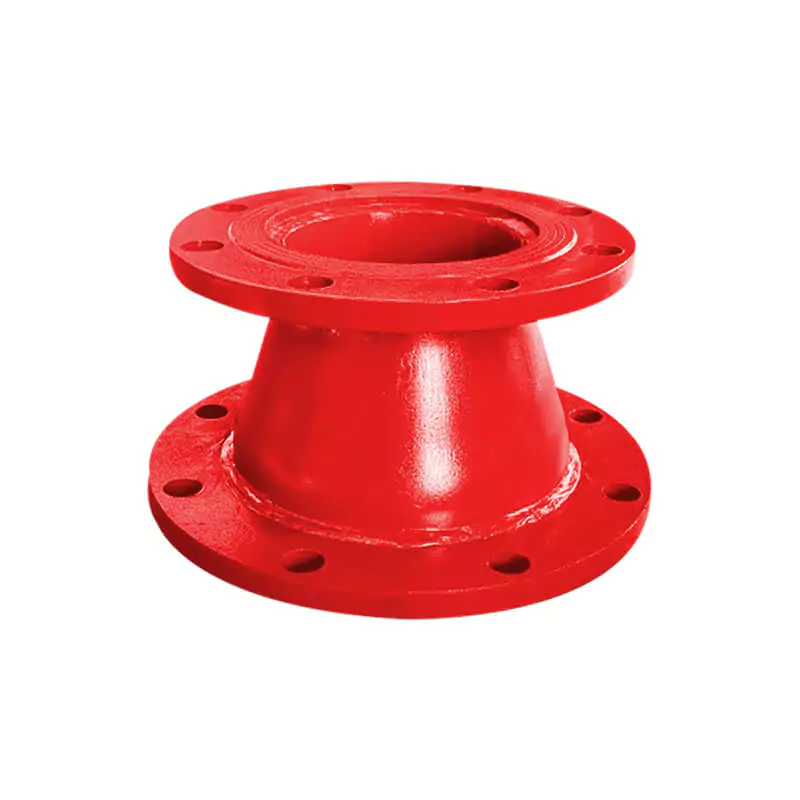

The Flanged Concentric Reducer is designed to connect the outlet of a fire pump to the inlet of the downstream pipeline. By smoothly transitioning between different pipe diameters, it helps reduce fluid velocity and friction loss, improving system efficiency and protecting equipment.
Key Features:
- Connects fire pump outlet to downstream piping
- Minimizes velocity and friction loss in the pipeline
- Ensures smooth flow transition to reduce system wear
- Certificate: ISO Certified
- Standard: Refer to NFPA 20
- Connection Type: Flanged (ANSI B16.5 Class 150, EN 1092-1 PN16, etc.)
- Material Options: Carbon Steel / Stainless Steel 304
- Working Pressure: Class 150 / 16 bar
- Surface Finish: Red or Blue painted exterior
