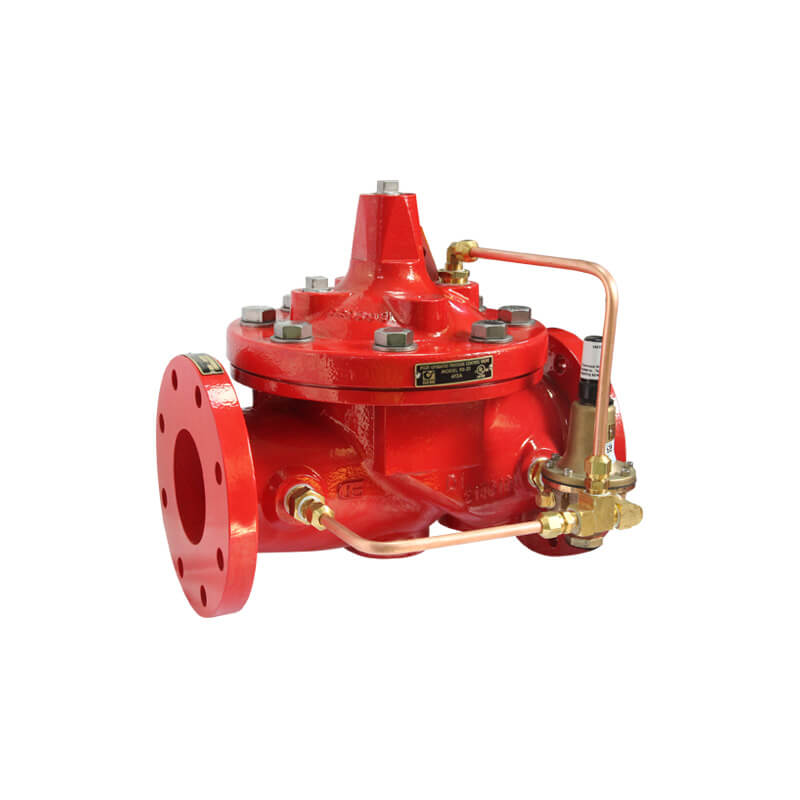

The Flanged Globe Type Pressure Reducing Valve is a pilot-operated control valve that ensures a consistent, reduced downstream pressure in sprinkler and standpipe systems. With a flanged connection and globe valve design, it maintains stable outlet pressure regardless of fluctuating inlet pressure or flow rate.
Key Features:
- Certificate: UL Listed / FM Approved / CE Certified
- Standard Compliance: UL 1739, NFPA 13, NFPA 14
- Connection: Flanged (B16.42 Class 150/300, B16.1 Class 125/250, EN 1092-2 PN16)
- Pressure Adjustment Range: 50–175 psi / 30–165 psi
- Temperature Range: Up to 82°C (water)
- Working Pressure: 200 / 250 / 300 / 365 psi
- Surface Coating: Fusion Bonded Epoxy (FBE) as per AWWA C550
- Function: Automatically reduces high inlet pressure to a steady, safe outlet pressure
