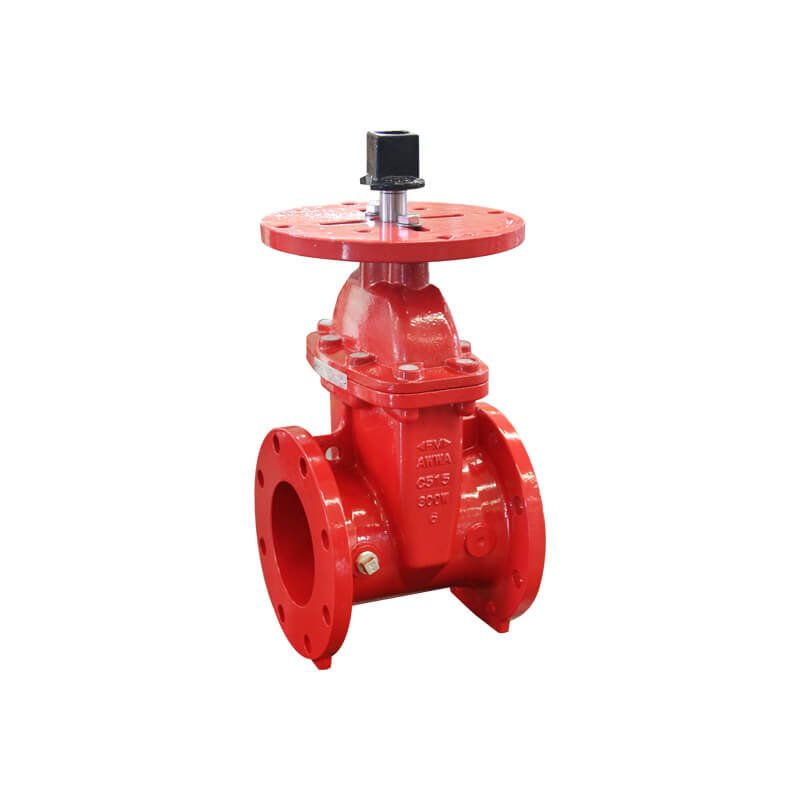

A Non-Rising Stem (NRS) Gate Valve featuring flanged connections and an integrated post flange with visual open/closed indicator. Designed for underground or vault installations, it operates via a wrench nut (T-key operated) while the indicator post provides clear valve position status.
Key Features:
- Certifications:UL Listed / FM Approved
- Standards Compliance:UL 262 / AWWA C515, C509
- Connections:
- Flanged:1 Class 125 / B16.5 Class 150
- Mechanical Joint:ANSI/AWWA C153/A21.53
- Post Flange Details:
- Diameter: 12″
- Bolt Circle (PCD): 10-½″
- Bolt Holes: 4 × ¾″
- Pressure Rating:250 / 300 / 363 psi (selectable)
- Temperature Range:0°C to 80°C (32°F to 176°F)
- Surface Protection:FBE Coating (AWWA C550)
