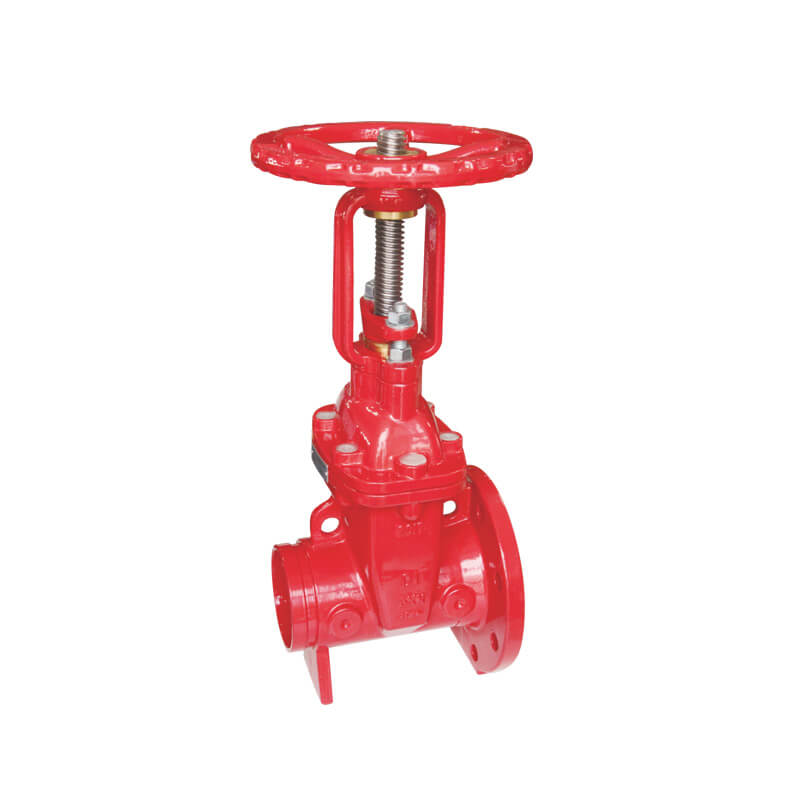

The Flanged x Grooved OS&Y (Outside Stem & Yoke) Gate Valve offers versatile installation with both flanged (EN 1092-2) and grooved (ISO 6182) connections, providing flexibility for different piping system requirements. It operates via a gate-type disc—raising the gate enables full water flow, while lowering it ensures a secure shutoff.
Key Features & Specifications:
- Certifications: UL Listed / FM Approved
- Standard Compliance: BS EN 1074-2
- Dual Connection Options:
- Flanged (EN 1092-2)for bolted, high-pressure sealing
- Grooved (ISO 6182)for quick, tool-free installation
- Temperature Range: 0°C to 80°C
- Working Pressure: PN 16
- Corrosion-Resistant Coating: Fusion-Bonded Epoxy (FBE) per AWWA C550
