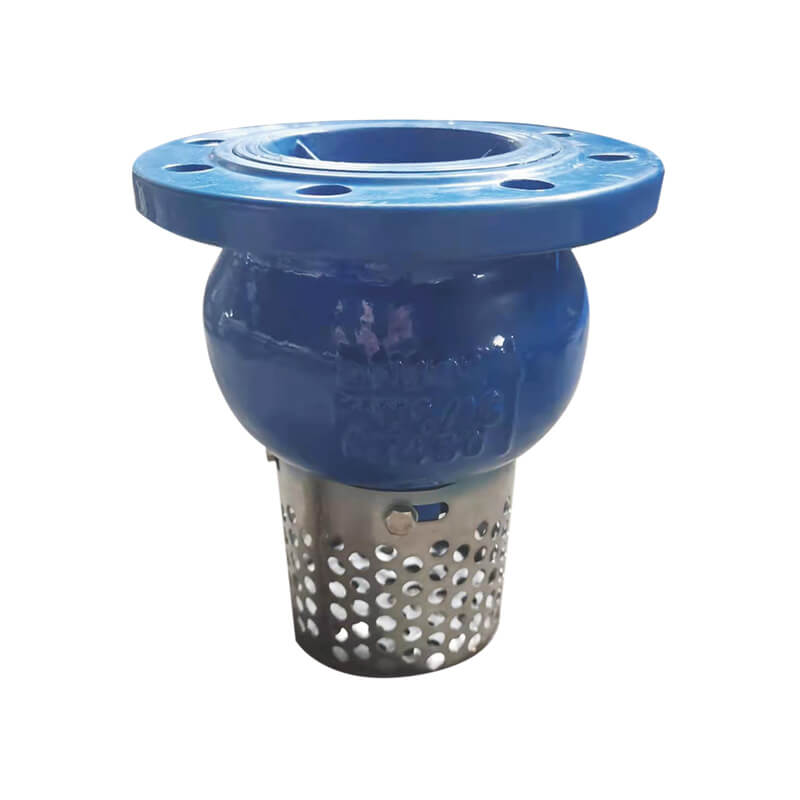

The Foot Valve is a check valve designed for installation at the suction side of a pump. Equipped with a built-in screen, it prevents debris from entering the pump or pipeline, ensuring reliable operation and protecting the system from damage. Commonly used in fire protection and water supply systems.
Key Features:
- Acts as a one-way check valve with debris protection
- Installed at the pump suction side to maintain prime and prevent backflow
- Integrated screen filters out large particles and contaminants
- Ensures efficient pump performance and system longevity
- Certificate: ISO Certified
- Standard: NFPA 20 compliant
- Connection Types: Threaded (NPT or BSPT), Flanged (EN 1092-2 PN10 / PN16)
- Temperature Range: 0°C to 80°C (EPDM)
- Working Pressure: 16 bar
- Surface Finish: Blue Fusion Bonded Epoxy (FBE) coating
