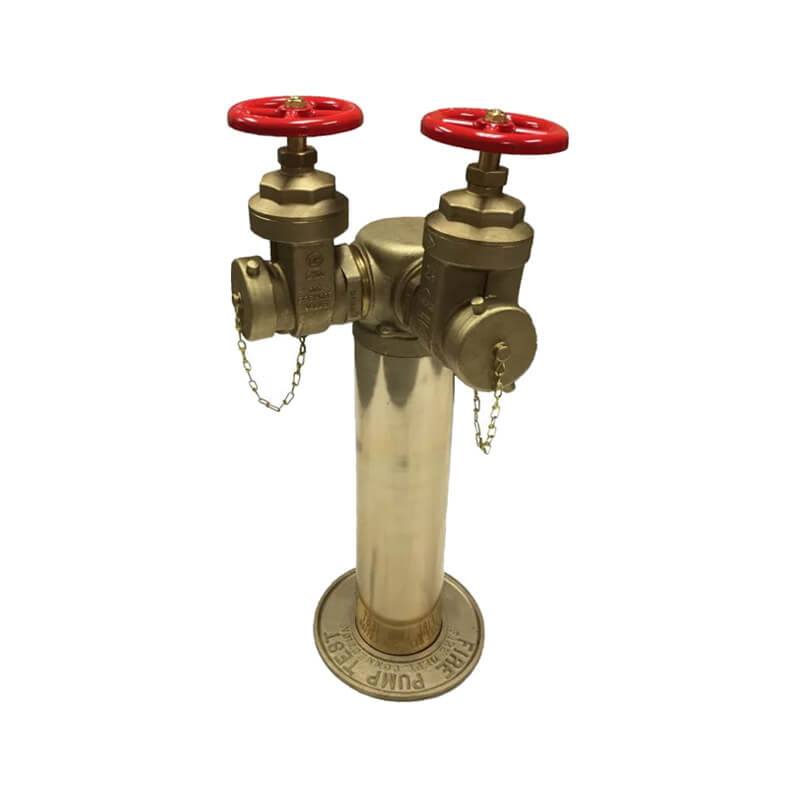

The Freestanding Fire Pump Test Connection is a purpose-built unit designed for conducting flow tests on fire pumps without discharging water into the protected building. Installed externally or within pump rooms, this self-supported assembly allows fire protection professionals to verify that fire pumps meet performance standards in line with NFPA 20 and other regulatory guidelines.
This unit typically includes multiple test outlets mounted on a sturdy frame or post, and is connected to the fire pump discharge line. It provides a safe, accessible point to connect hoses, flow meters, or calibrated nozzles for water flow measurement and pump capacity verification.
Key Features:
Freestanding structure—no wall mounting required
Available with 2, 3, 4, or more hose outlets
Outlet types include BS336 instantaneous, Storz, NST/NH, or custom
Constructed from galvanized steel, stainless steel, or epoxy-coated carbon steel
Inlet connections: flanged, grooved, or threaded, sized to system requirements
Designed to operate under high pressure (typically up to 20 bar / 290 psi)
Optional accessories: drainage port, signage, flow meter, pressure gauge, or isolation valves
Ideal for use in commercial, industrial, and high-rise fire protection systems
Complies with NFPA 20, LPCB, and local authority standards
