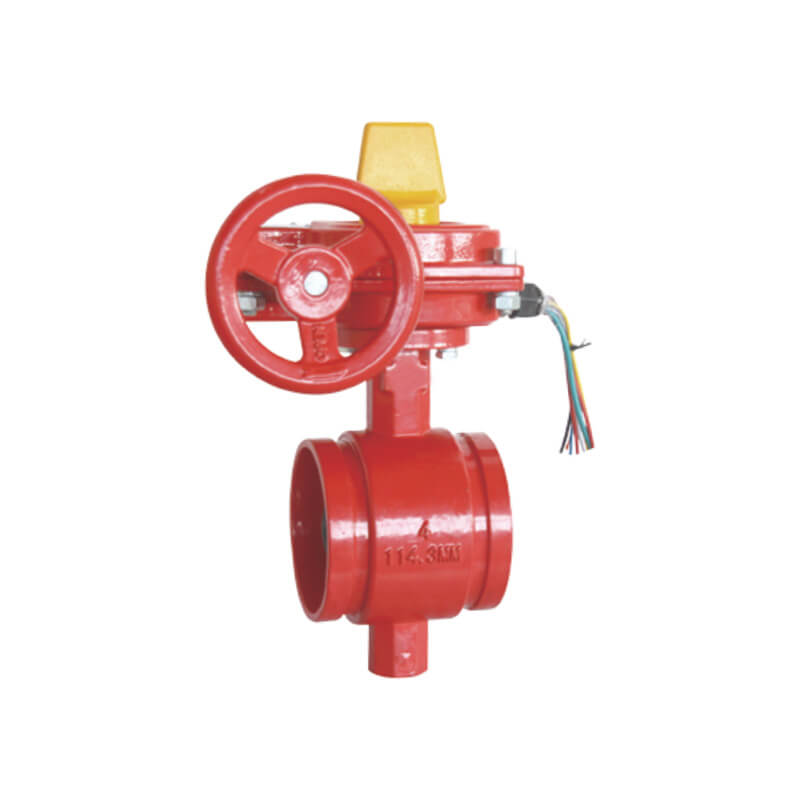

This lightweight butterfly valve features a grooved-end design for quick installation and a gear actuator with a tamper switch for monitoring. With a quarter-turn disc operation, it provides reliable shut-off and flow control, ideal for fire protection and industrial piping systems.
Key Features:
- Grooved-end design for fast and easy installation
- Gear actuator with tamper switch for system monitoring
- Quarter-turn disc operation for full open/close functionality
- Certification: UL Listed / FM Approved
- Standards: UL 1091 / MSS SP-67
- Connection: Grooved as per AWWA C606
- Contact Rating:
- 16A at 125/250VAC
- 5A at 250VDC
- 10A at 36VDC
- Temperature Range: 0°C to 80°C
- Working Pressure: 300 / 363 psi
- Coating: Fusion Bonded Epoxy (FBE) as per AWWA C550
