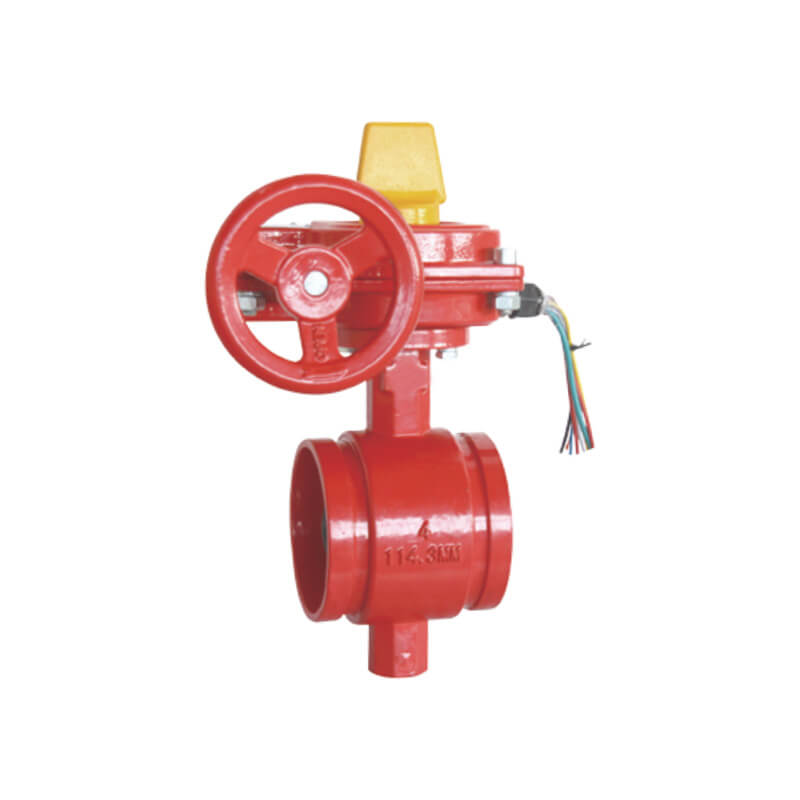

This lightweight butterfly valve features a gear actuator and tamper switch for signal monitoring. Designed with grooved ends for easy installation and maintenance, it enables quick quarter-turn operation to fully open or close the flow, commonly used in fire protection and water systems.
Key Features:
- Lightweight design with gear actuator and tamper switch
- Grooved connection for fast and easy installation
- Quarter-turn disc operation for open/close control
- Certification: UL Listed / FM Approved
- Standards: EN 593 / BS 5155
- Connection: Grooved as per ISO 6182
- Contact Rating:
- 16A at 125/250VAC
- 5A at 250VDC
- 10A at 36VDC
- Temperature Range: 0°C to 80°C
- Working Pressure: PN 16
- Coating: Fusion Bonded Epoxy (FBE) as per AWWA C550
