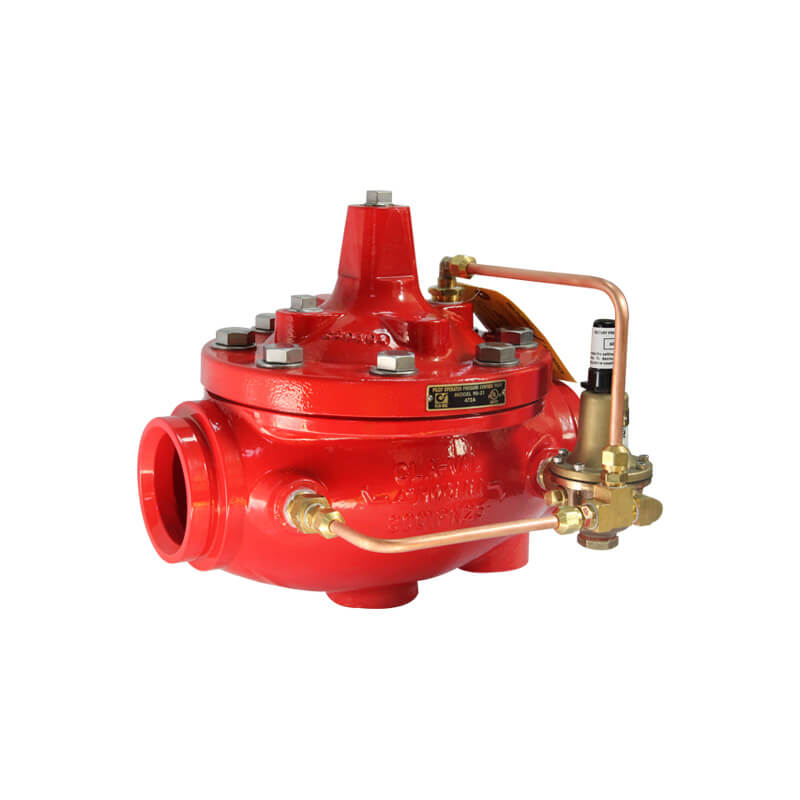

The Grooved Globe Type Pressure Reducing Valve is a pilot-operated control valve with a globe-style body and grooved connections. Designed for use in sprinkler and standpipe systems, it ensures a consistent, reduced outlet pressure regardless of fluctuations in inlet pressure or flow rate.
Key Features:
- Certification: UL Listed / FM Approved
- Standards: UL 1739, NFPA 13, NFPA 14
- Connection: Grooved (AWWA C606, ISO 6182)
- Adjustment Range: 50–175 psi / 30–165 psi (depending on model)
- Max Temperature: 82°C (water)
- Working Pressure: 300 / 365 psi
- Coating: Fusion Bonded Epoxy (FBE) as per AWWA C550
- Application: Sprinkler and standpipe pressure control
- Operation: Automatically maintains steady outlet pressure without affecting flow or inlet pressure
