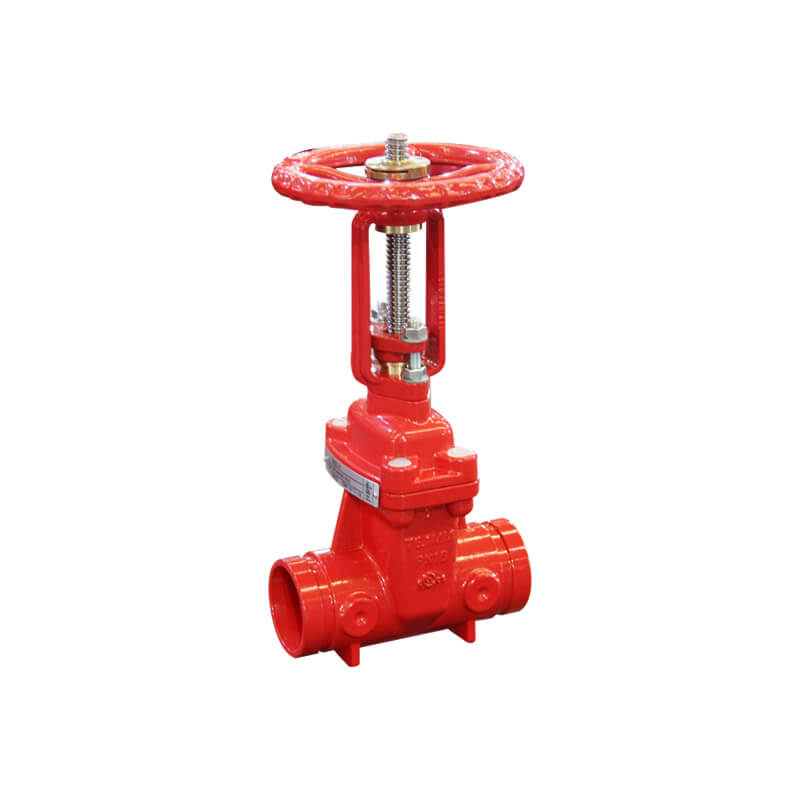

A grooved OS&Y (Outside Stem and Yoke) gate valve features a grooved connection (ISO 6182) for quick and secure installation. It operates by raising or lowering a gate-type disc—lifting the gate allows full water flow, while lowering it ensures a tight shutoff.
Key Features & Specifications:
- Certifications: UL Listed / FM Approved
- Standard Compliance: BS EN 1074-2
- Connection Type: Grooved (ISO 6182) for fast, tool-free assembly
- Temperature Range: 0°C to 80°C
- Working Pressure: PN 16
- Durable Coating: Fusion-Bonded Epoxy (FBE) per AWWA C550 for corrosion resistance
