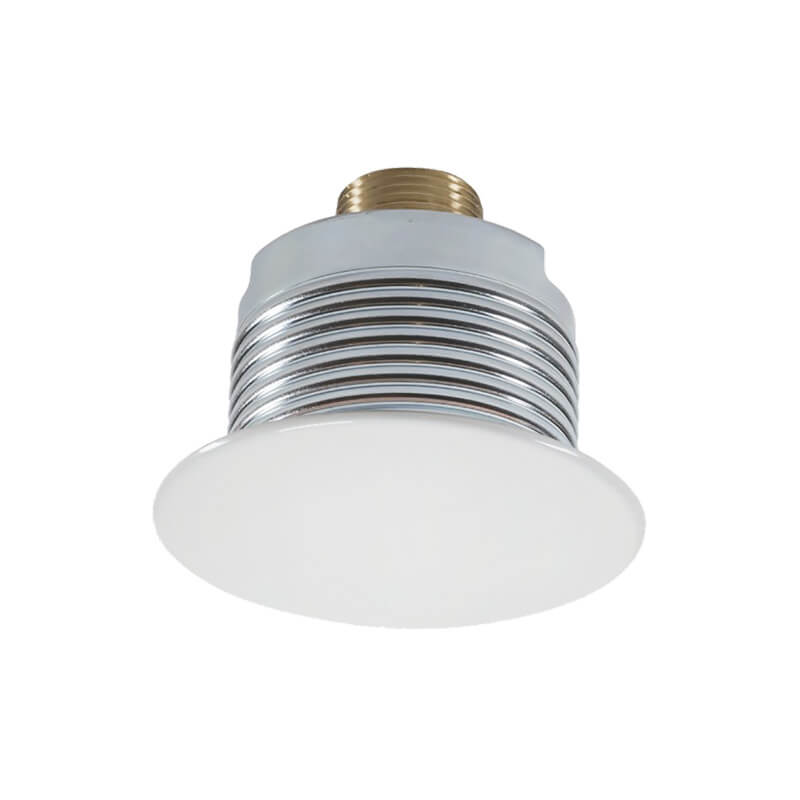

The K11.2 concealed pendent sprinkler is specially designed for extended coverage in both light and ordinary hazard occupancies, such as commercial, educational, and institutional buildings. It features a concealed design with an aesthetic cover plate, while delivering powerful water discharge and a maximum coverage area of 400 ft² (37.2 m²), in compliance with NFPA 13.
Key Features:
- Extended coverage up to 400 ft² (37.2 m²) per sprinkler
- Suitable for light and ordinary hazard occupancies
- Concealed pendent design for clean ceiling appearance
- High-performance K11.2 (K161) orifice for efficient water discharge
- Certificate: UL Listed
- Standard: UL 199, NFPA 13
- Minimum Spacing: 9 ft (2.7 m)
- Operating Pressure: Min 7 psi
- Working Pressure: 175 psi
- Test Pressure: 500 psi (Factory hydrostatic test)
- Sprinkler Finish: Rough brass
- Cover Plate Options: Chrome plated, white painted, or custom finishes
