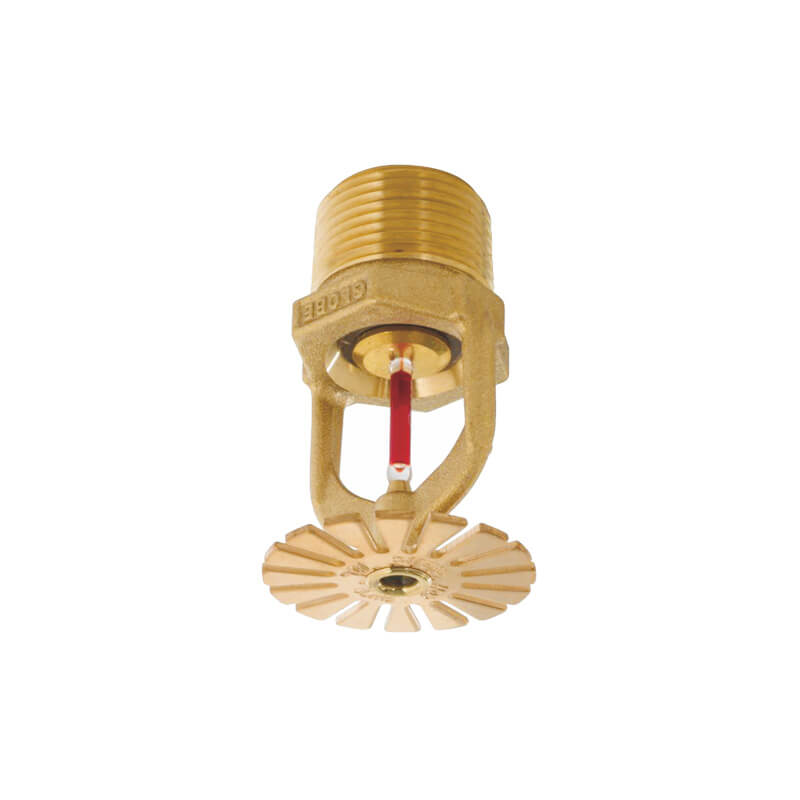

The K11.2 pendent sprinkler is designed for extended coverage in both light and ordinary hazard occupancies. With a high K-Factor of 11.2 (K161), it delivers increased water flow and enables a maximum coverage area of 400 ft² (37.2 m²), helping reduce the number of sprinklers required and enhancing system efficiency. Ideal for use in commercial, institutional, and industrial settings.
Key Features:
- For extended coverage in light and ordinary hazard areas
- Pendent configuration for ceiling-mounted installation
- High K-Factor (K11.2 / K161) for enhanced discharge
- Reduces total sprinkler count in system design
- Certificate: UL Listed / FM Approved
- Standard: UL 199, NFPA 13
- Feature:2 (K161), EC, Minimum spacing: 9 ft
- Working Pressure: 175 psi
- Test Pressure: 500 psi (Factory hydrostatic test)
- Operating Pressure: Minimum 7 psi
- Surface Finish Options: Rough brass, chrome plated, white painted, etc.
