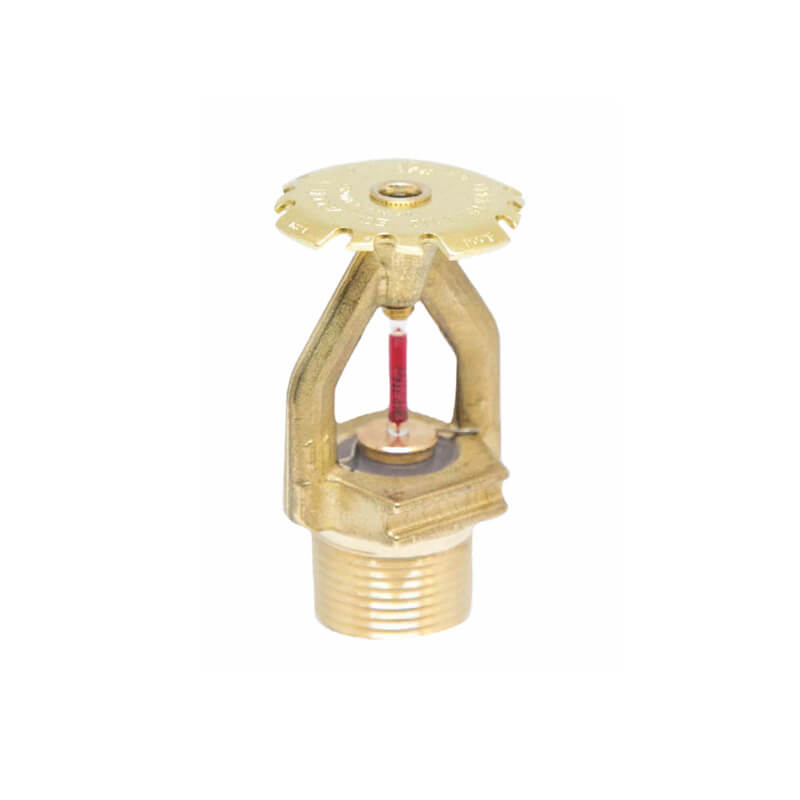

The K11.2 Extended Coverage Upright Sprinkler is engineered for both light and ordinary hazard occupancies, offering a broader coverage area of up to 400 ft² (37.2 m²) per head as per NFPA 13. With a high K-Factor of 11.2 (K161), it delivers greater water discharge, ensuring effective fire suppression in more demanding environments.
Key Features:
Designed for extended coverage in light or ordinary hazard areas
Upright orientation for ceiling-mounted piping
High K-Factor ensures strong discharge and efficient coverage
Helps reduce the number of sprinklers required
Certificate: UL Listed / FM Approved
Standard: UL 199, NFPA 13
K-Factor:2 (K161), EC
Coverage Area: Up to 400 ft² (37.2 m²)
Minimum Spacing: 11 ft (3.4 m)
Operating Pressure: Min 7 psi
Working Pressure: 175 psi
Test Pressure: 500 psi (Factory hydrostatic test)
Surface Finishes: Rough brass, chrome plated, white painted, etc.
