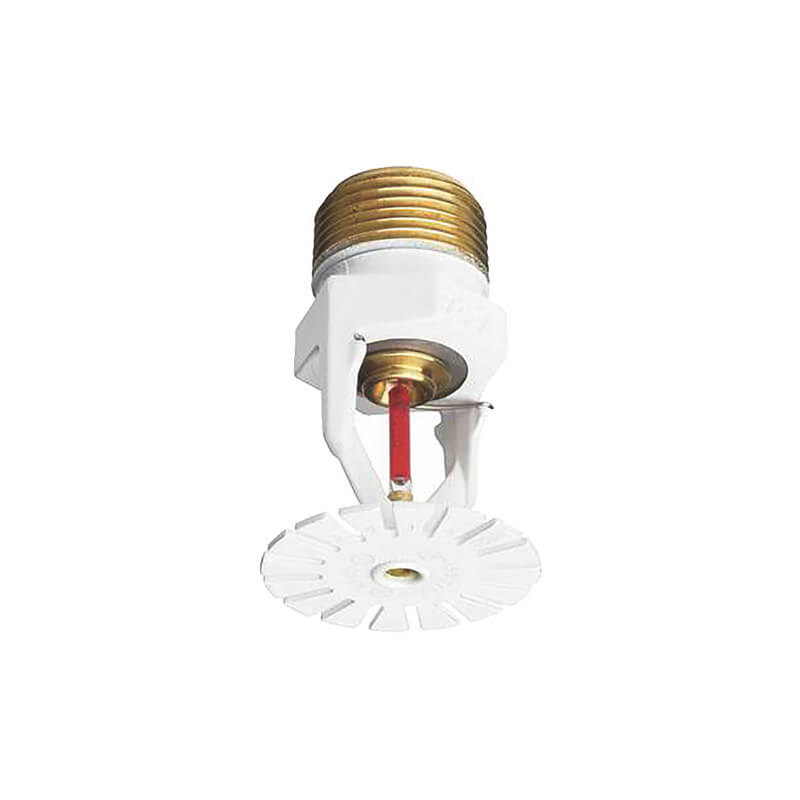

The K14.0 pendent sprinkler is specifically designed for extended coverage in ordinary hazard occupancies such as warehouses, commercial buildings, and manufacturing facilities. With a high K-Factor of 14.0 (K202), it provides powerful water discharge and covers areas up to 400 ft² (37.2 m²) per head, meeting NFPA 13 requirements.
Key Features:
- Designed for ordinary hazard areas with extended coverage
- Pendent orientation for ceiling-mounted systems
- High K-Factor (14.0 / K202) ensures effective water delivery
- Reduces total number of sprinklers needed
- Certificate: UL Listed / FM Approved
- Standard: UL 199, NFPA 13
- Coverage Area: Up to 400 ft² (37.2 m²)
- Minimum Spacing: 12 ft (3.7 m)
- Operating Pressure: Min 7 psi
- Working Pressure: 175 psi
- Test Pressure: 500 psi (Factory hydrostatic test)
- Surface Finishes: Rough brass, chrome plated, white painted, etc.
