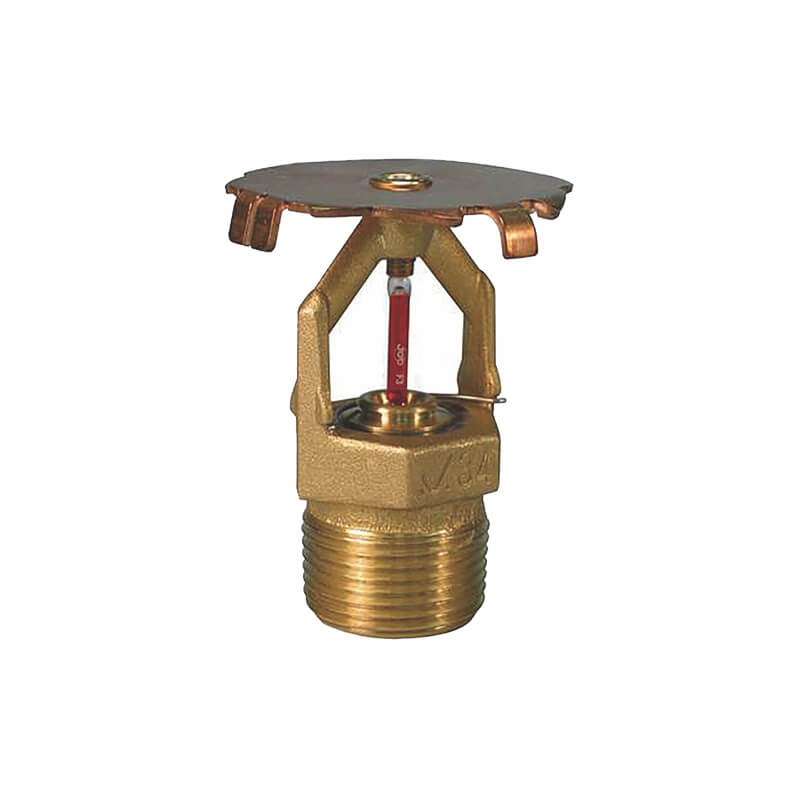

The K14.0 Extended Coverage Upright Sprinkler is engineered for use in ordinary hazard occupancies such as warehouses, manufacturing areas, and commercial facilities. It features a large orifice with a K-Factor of 14.0 (K202) to deliver higher water flow and provides a maximum coverage area of 400 ft² (37.2 m²) in accordance with NFPA 13.
Key Features:
- For ordinary hazard occupancies with extended coverage
- Upright design for installation above piping
- High K-Factor (14.0 / K202) for increased water discharge
- Reduces the number of sprinklers required in system layout
- Certificate: UL Listed
- Standard: UL 199, NFPA 13
- Coverage Area: Up to 400 ft² (37.2 m²)
- Minimum Spacing: 8 ft (2.4 m)
- Operating Pressure: Minimum 7 psi
- Working Pressure: 175 psi
- Test Pressure: 500 psi (Factory hydrostatic test)
- Finishes: Rough brass, chrome plated, white painted, etc.
