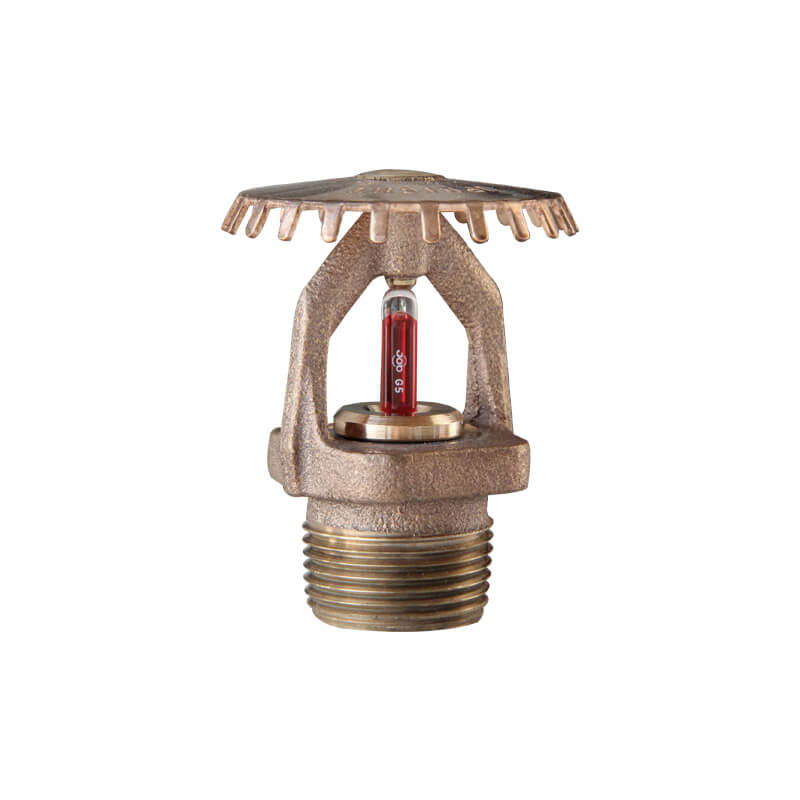

The K16.8 CMDA (Control Mode Density Area) Standard Response Upright Sprinkler is designed for fire protection in storage applications such as high-piled warehouses. It delivers a high K-factor for greater water discharge, meeting NFPA 13 requirements for effective fire control in demanding environments.
Key Features:
- Designed for storage occupancies including high-piled storage
- High K-factor (K16.8 / K242) for large volume discharge
- Upright installation for broad and unobstructed spray pattern
- Complies with NFPA 13 CMDA fire protection standards
- Certificate: UL Listed / FM Approved
- Standard: UL 199, NFPA 13
- Feature:8 (K242), CMDA, SR, upright
- Working Pressure: 175 psi
- Test Pressure: 500 psi (factory hydrostatic test)
- Operating Pressure: Minimum 7 psi
- Surface Options: Rough brass, chrome plated, white painted, etc.
