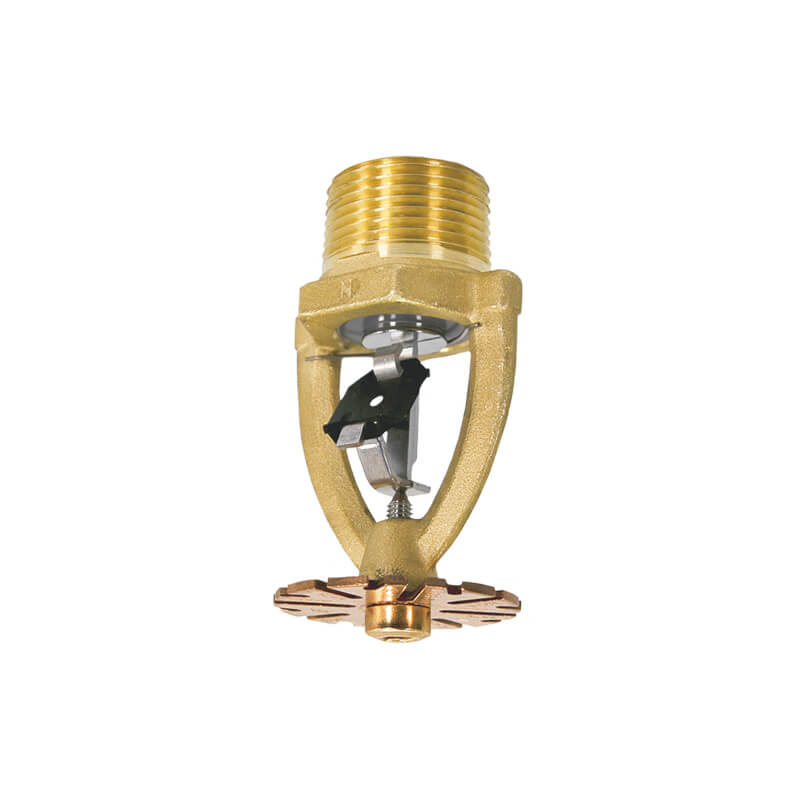

The K25.2 EC-CMDA (Extended Coverage Control Mode Density Area) Pendent Sprinkler is designed for fire control in extra hazard and high-piled storage occupancies. With a high K-factor and wide coverage capability, it helps reduce the number of sprinklers required while maintaining compliance with NFPA 13.
Key Features:
- Provides extended coverage up to 196 ft² (18.2 m²)
- Designed for extra hazard and high-piled storage applications
- High K-factor for greater water discharge
- Pendent configuration for downward spray pattern
- Certificate: UL Listed / FM Approved
- Standard: UL 199, NFPA 13
- Feature:2 (K363), EC-CMDA, min spacing 8 ft
- Working Pressure: 175 psi
- Test Pressure: 500 psi (factory hydrostatic test)
- Operating Pressure: Minimum 7 psi
- Surface Options: Rough brass / chrome plated
