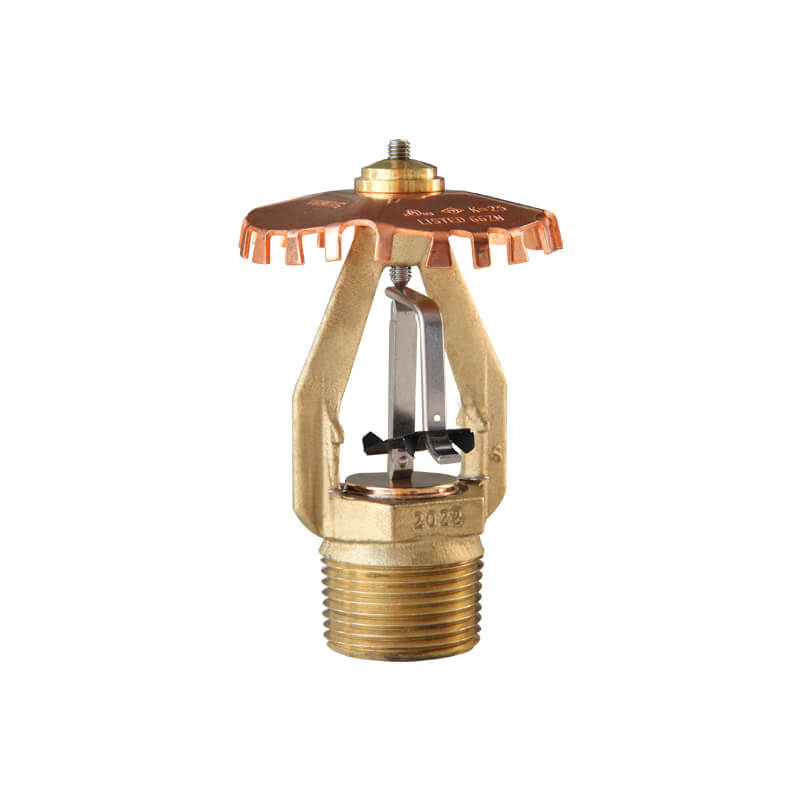

The K25.2 EC-CMDA (Extended Coverage Control Mode Density Area) Upright Sprinkler is designed for fire control in extra hazard and high-piled storage occupancies. It offers a large K-factor for higher flow rates and provides extended coverage up to 196 ft² (18.2 m²) per sprinkler, complying with NFPA 13 requirements.
Key Features:
- Ideal for extra hazard and high-piled storage areas
- Extended coverage up to 196 ft² (18.2 m²) per sprinkler
- Upright design for overhead installation
- Meets NFPA 13 CMDA criteria for wider spacing
- Certificate: UL Listed / FM Approved
- Standard: UL 199, NFPA 13
- Feature:2 (K363), EC-CMDA, minimum spacing 8 ft
- Working Pressure: 175 psi
- Test Pressure: 500 psi (factory hydrostatic test)
- Operating Pressure: Minimum 7 psi
- Surface Finish: Rough brass
