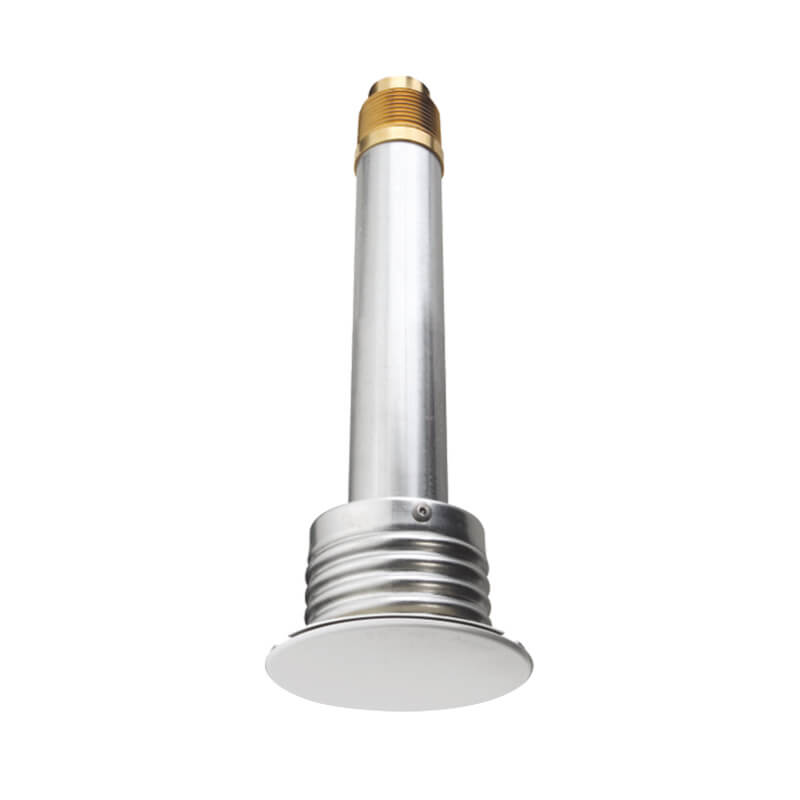

The K5.6 dry concealed pendent sprinkler is designed for fire protection in areas exposed to freezing temperatures while maintaining aesthetic appeal. Installed in a sealed extension nipple, it prevents water from entering until activation. The concealed design features a low-profile cover plate that blends seamlessly with finished ceilings.
Key Features:
- Suitable for use in cold, unheated areas
- Concealed pendent design for aesthetic installations
- Dry type with sealed extension nipple prevents pipe freezing
- Certificate: UL Listed
- Standard: UL 199, NFPA 13
- K-Factor:6 (K80)
- Working Pressure: 175 psi
- Test Pressure: 500 psi (Factory hydrostatic test)
- Operating Pressure: Min 7 psi
- Surface Finish:
- Sprinkler: Rough brass
- Cover Plate: White
