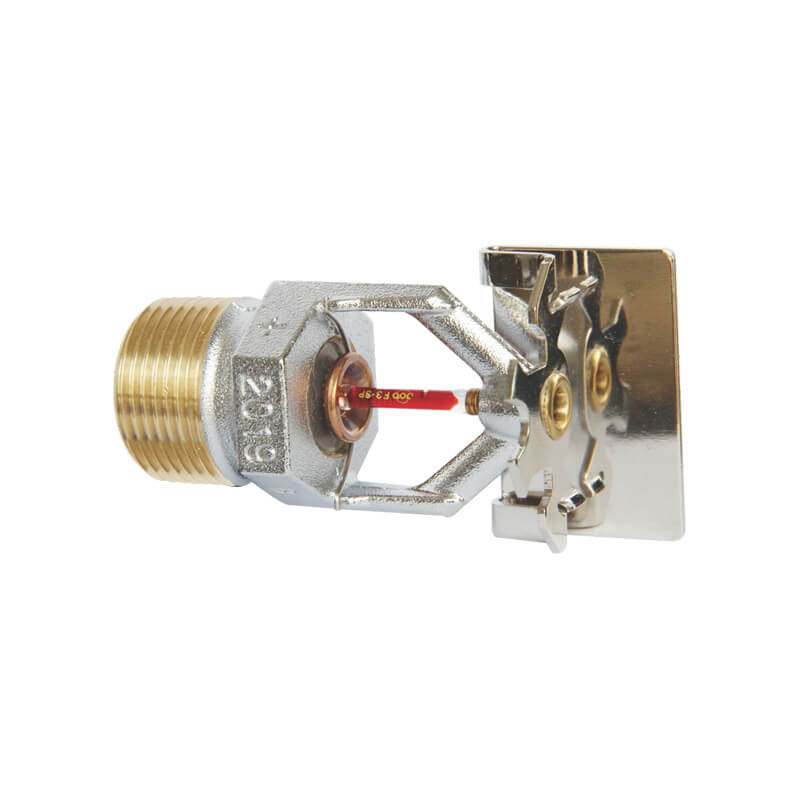

The K5.6 Extended Coverage Light Hazard (ECLH) Horizontal Sidewall sprinkler is engineered for use in light hazard occupancies such as hotels, offices, and educational buildings. It offers wide-area protection—up to 400 ft² (37.2 m²) per sprinkler—minimizing the number of heads required while maintaining compliance with NFPA 13.
Key Features:
- Extended coverage for light hazard occupancies
- Horizontal sidewall design for wall-mounted applications
- Reduces installation cost with fewer sprinklers
- Certificate: UL Listed / FM Approved
- Standard: UL 199, NFPA 13
- K-Factor:6 (K80), ECLH
- Minimum Spacing: 8 ft (2.4 m)
- Operating Pressure: Minimum 7 psi
- Working Pressure: 175 psi
- Test Pressure: 500 psi (Factory hydrostatic test)
- Surface Finishes: Rough brass, chrome plated, white painted, etc.
