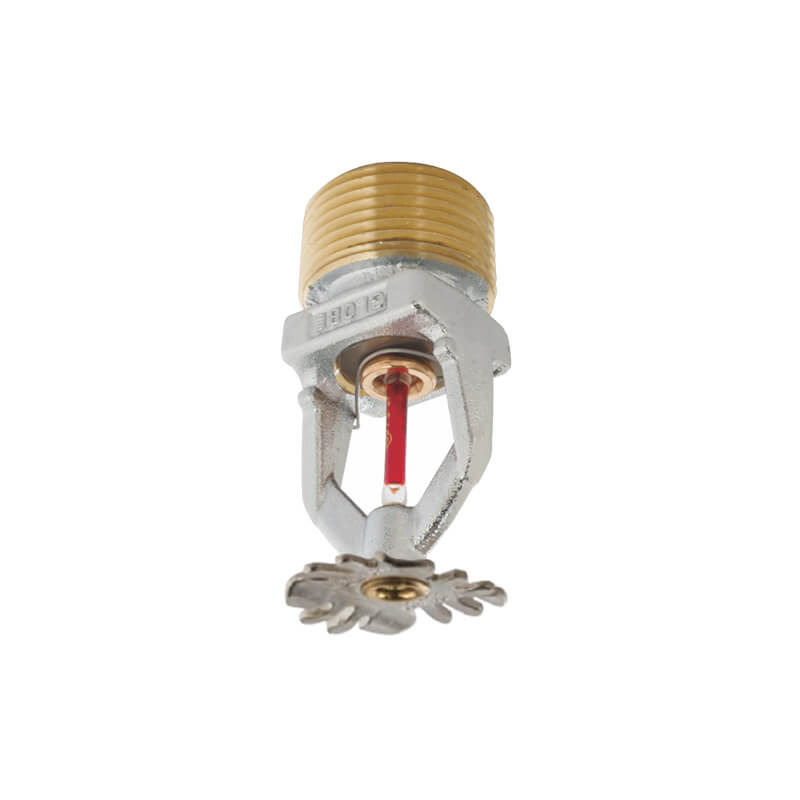

The K5.6 ECLH pendent sprinkler is engineered for efficient fire protection in light hazard occupancies such as offices, schools, and residential buildings. Designed for extended coverage, it provides up to 400 ft² (37.2 m²) of protection per sprinkler as per NFPA 13, reducing the total number of sprinklers required.
Key Features:
- Extended coverage for light hazard occupancies
- Reduces installation cost with fewer sprinklers required
- Pendent configuration with downward spray pattern
- Certificate: UL Listed / FM Approved
- Standard: UL 199, NFPA 13
- K-Factor:6 (K80), ECLH
- Minimum Spacing: 8 ft (2.4 m)
- Operating Pressure: Minimum 7 psi
- Working Pressure: 175 psi
- Test Pressure: 500 psi (Factory hydrostatic test)
- Surface Finishes: Rough brass, chrome plated, white painted, etc.
