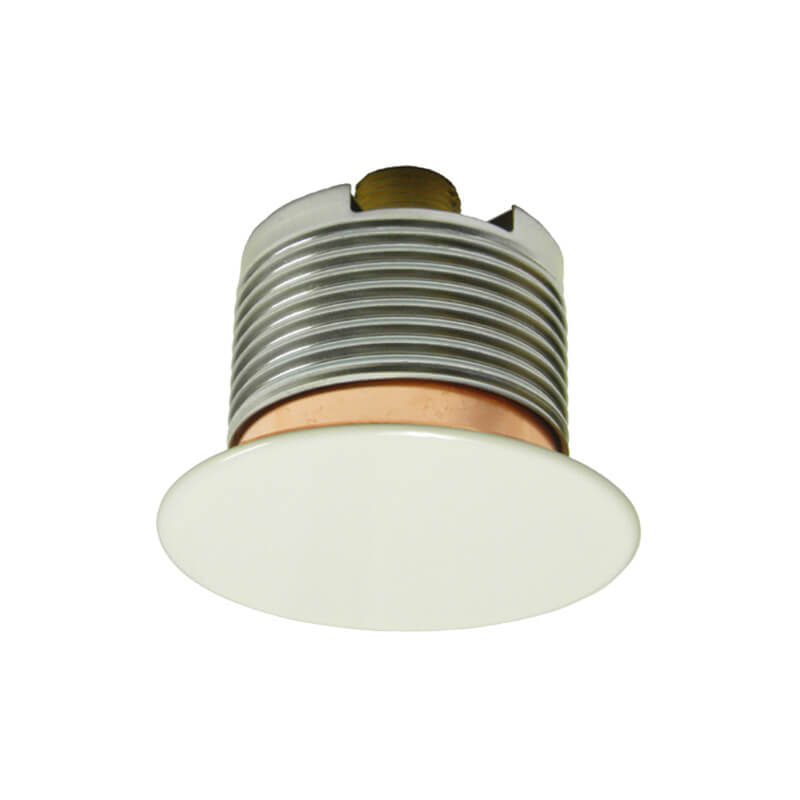

The K5.6 Extended Coverage Light Hazard (ECLH) Quick Response Concealed Pendent Sprinkler offers efficient fire protection with a sleek, architecturally pleasing design. Ideal for light hazard occupancies such as offices, hotels, and schools, it provides a maximum coverage area of 400 ft² (37.2 m²) per NFPA 13, while remaining hidden behind a decorative cover plate until activation.
Key Features:
- Concealed design for clean ceiling aesthetics
- Quick response for enhanced occupant safety
- Extended coverage up to 400 ft² for light hazard areas
- Pendent configuration with downward spray
- Certificate: UL Listed
- Standard: UL 199, NFPA 13
- K-Factor:6 (K80), ECLH
- Minimum Spacing: 8 ft (2.4 m)
- Operating Pressure: Minimum 7 psi
- Working Pressure: 175 psi
- Test Pressure: 500 psi (Factory hydrostatic test)
- Surface Finishes:
- Sprinkler: Rough brass
- Cover Plate: Chrome plated, white painted, or other finishes
