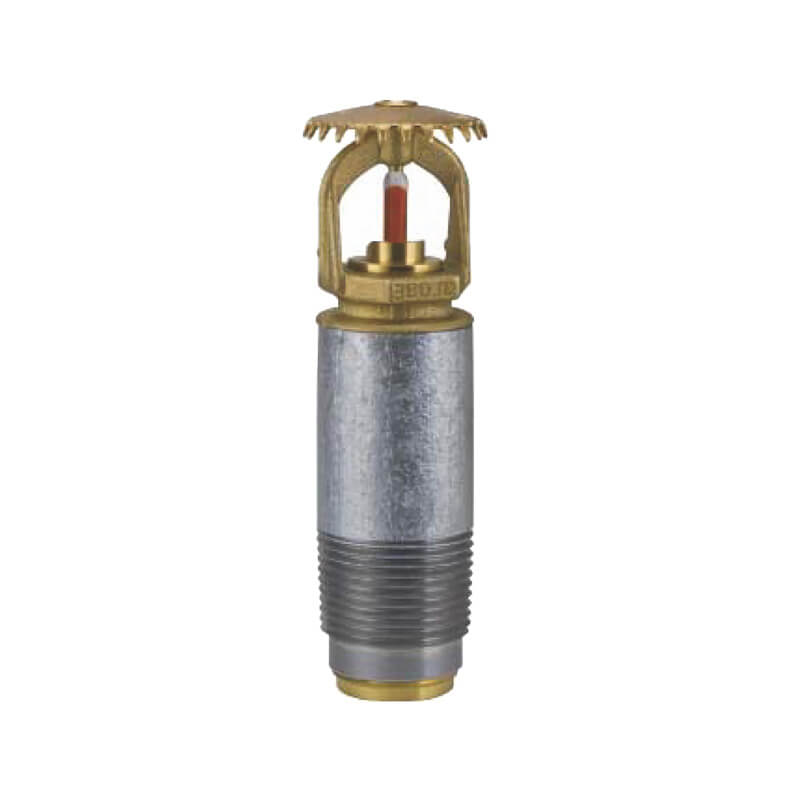

The K8.0 dry upright sprinkler is designed for fire protection in areas exposed to freezing temperatures. It features a sealed extension nipple to prevent water entry until activation, protecting the piping from freeze damage. Ideal for applications such as unheated warehouses and exposed piping systems.
Key Features:
- Standard response for controlled sprinkler activation
- Designed for freezing or unheated environments
- Dry-type upright design with sealed extension nipple
- Certificate: UL Listed / FM Approved
- Standard: UL 199, NFPA 13
- K-Factor:0 (K115)
- Working Pressure: 175 psi
- Test Pressure: 500 psi (Factory hydrostatic test)
- Operating Pressure: Minimum 12 psi
- Surface Finish:
- Sprinkler: Rough brass
- Escutcheon: Signal white
