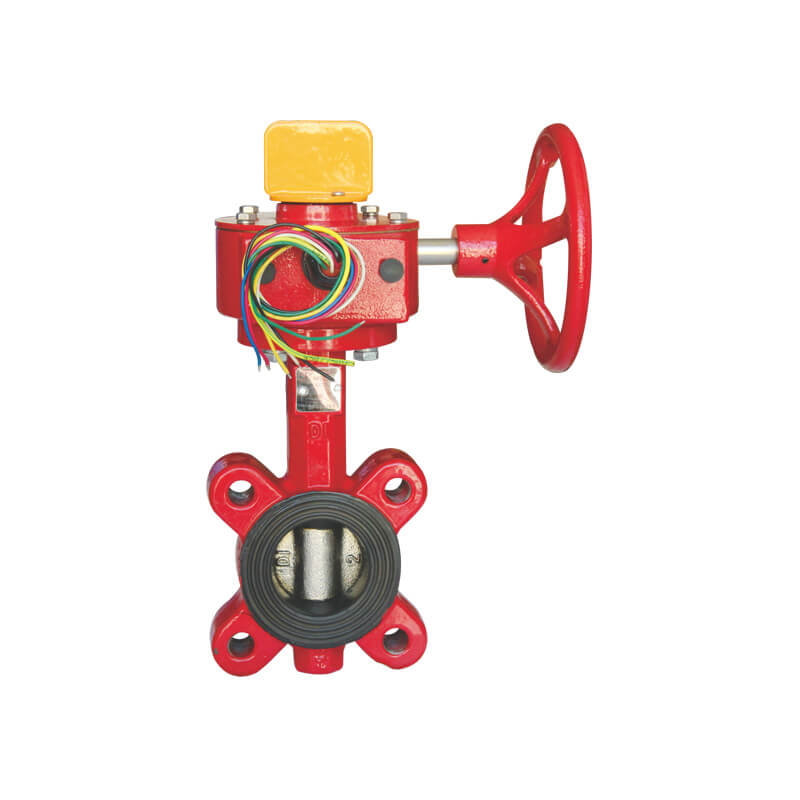

This lightweight lug-type butterfly valve is equipped with a gear actuator and tamper switch for signaling. Designed with lugs on the valve flanges for direct bolt connection, it allows quarter-turn disc operation to fully open or close the valve, making it ideal for fire protection and water systems.
Key Features:
- Lug-style design for secure flange bolt connection
- Gear actuator with tamper switch for monitoring
- Quarter-turn operation for full open/close functionality
- Certification: UL Listed / FM Approved
- Standards: UL 1091 / MSS SP-67
- Connection: Flanged as per ASME B16.42 Class 150
- Contact Rating:
- 16A at 125/250VAC
- 5A at 250VDC
- 10A at 36VDC
- Temperature Range: 0°C to 80°C
- Working Pressure: 300 / 363 psi
Coating: Fusion Bonded Epoxy (FBE) as per AWWA C550
