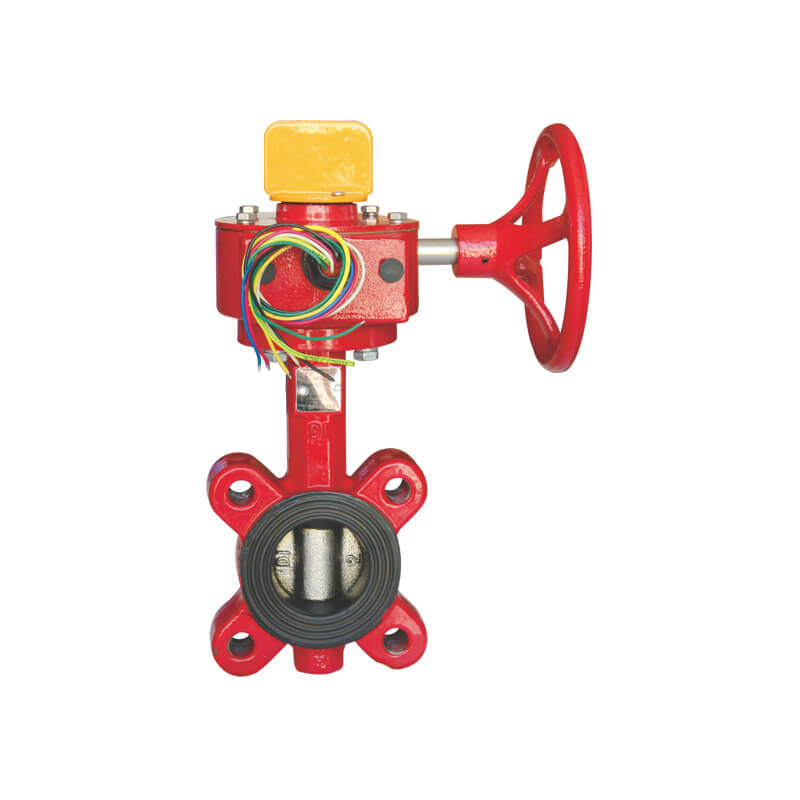

This lightweight valve features a gear actuator with a tamper switch for signaling and a lug-style design for secure bolt flange connections. It allows quick operation with a quarter-turn disc for full open or closed positions, ideal for fire protection and water systems.
Key Features:
- Lightweight design with signal gearbox and tamper switch
- Lug-type flanges for bolt connection
- Quick quarter-turn operation (open/close)
- Certification: UL Listed / FM Approved
- Standards: EN 593 / BS 5155
- Connection: Flanged as per EN 1092-2
- Contact Rating:
- 16A at 125/250VAC
- 5A at 250VDC
- 10A at 36VDC
- Temperature Range: 0°C to 80°C
- Working Pressure: PN 16
- Coating: Fusion Bonded Epoxy (FBE) as per AWWA C550
