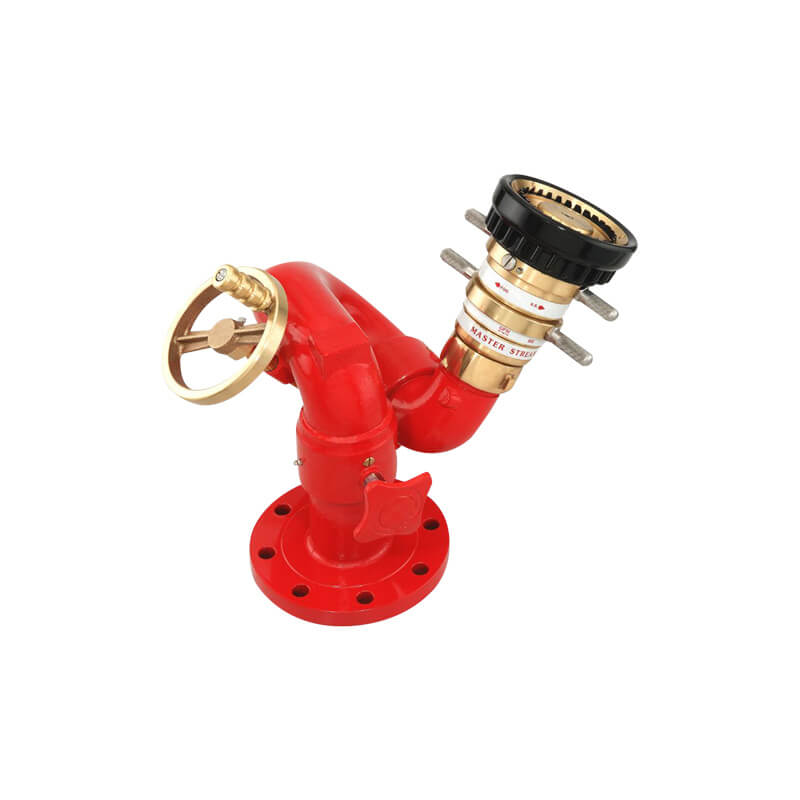

The Manual Operated Single Wheel Control Foam Monitor is designed with a large clear waterway to deliver high-capacity foam streams over extended distances. With a user-friendly single handwheel for precise control, it is ideal for fixed or vehicle-mounted firefighting systems and can be operated by a single person.
Key Features:
- Control Type: Manual single handwheel operation
- Spray Pattern: Adjustable between straight jet and wide spray
- Rotation: Full 360° horizontal rotation
- Elevation Range: +70° upward, -60° downward
- Connection: Threaded or flanged (ANSI Class 150, EN 1092 PN16, etc.)
- Working Pressure: Up to 200 psi
- Material Finish: Red FBE coating for corrosion resistance
- Standard Compliance: NFPA 11, UL 162, GB 19156
- Certification: FM Approved
