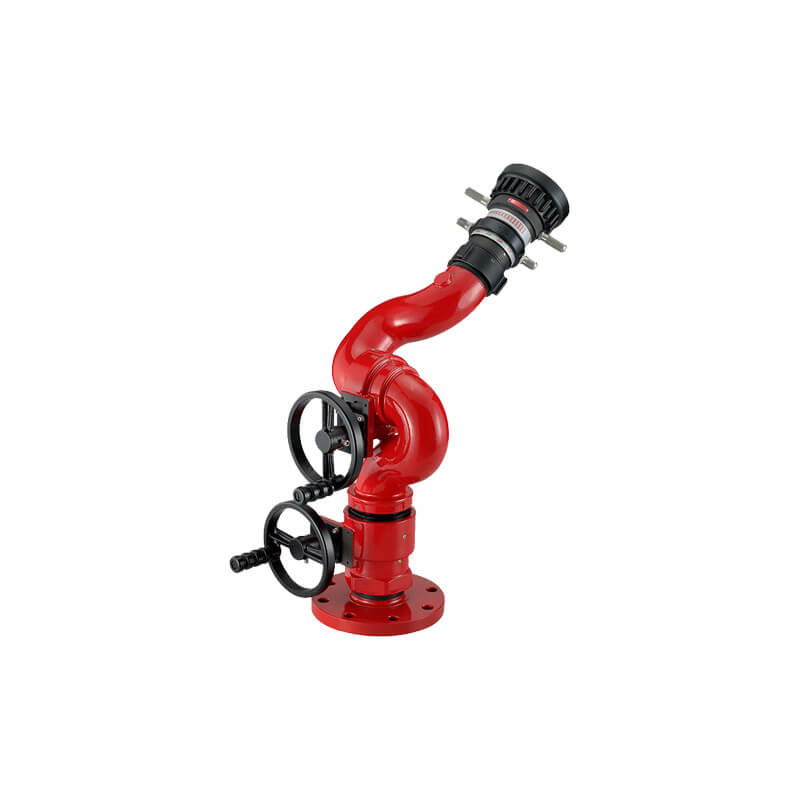

The Manual Operated Wheel Control Foam Monitor (225 to 1500 GPM) features a large clear waterway for high-capacity foam discharge and long-range reach. Designed for fixed or vehicle-mounted use, it offers dual handwheel control for smooth, precise operation by a single user.
Key Features:
- Flow Capacity: 225 to 1500 GPM
- Control Type: Manual dual handwheel operation for elevation and rotation
- Spray Pattern: Adjustable between straight jet and wide spray
- Rotation: 360° horizontal for full area coverage
- Elevation Range: +90° elevation and -45° depression
- Connection: Threaded or flanged (ANSI Class 150, EN 1092 PN16, etc.)
- Working Pressure: Rated up to 200 psi
- Surface Finish: Red FBE coating for corrosion protection
- Standard Compliance: NFPA 11, UL 162, GB 19156
- Certification: FM Approved
