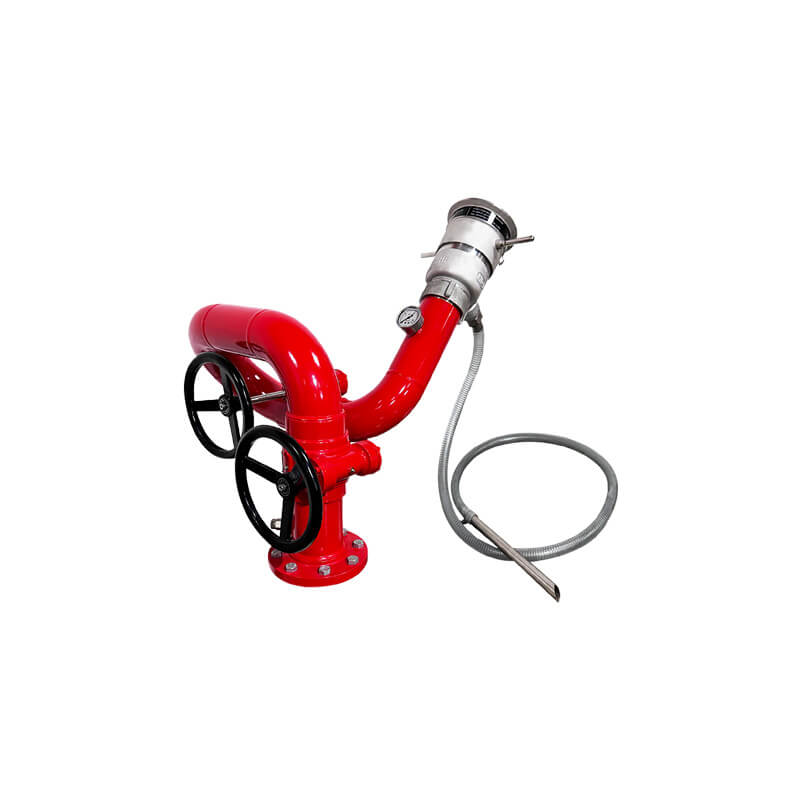

The Manual Operated Wheel Control Foam Monitor (500 to 1250 GPM) is engineered for effective, long-range foam discharge in firefighting operations. With a large, unobstructed waterway and dual handwheel controls, it ensures smooth and precise stream direction. Ideal for fixed or vehicle-mounted installations, it supports single-operator use with high reliability.
Key Features:
- Flow Capacity: 500 to 1250 GPM
- Control Type: Dual handwheel operation for elevation and rotation
- Spray Pattern: Straight jet and wide spray options
- Rotation: 360° horizontal rotation for complete coverage
- Elevation Range: +90° elevation and -65° depression
- Connection Type: Flanged (ANSI Class 150, EN 1092 PN16, etc.)
- Working Pressure: Up to 175 psi
- Surface Finish: Red FBE coating for corrosion protection
- Standard Compliance: NFPA 11, UL 162, GB 19156
- Certification: UL Listed
