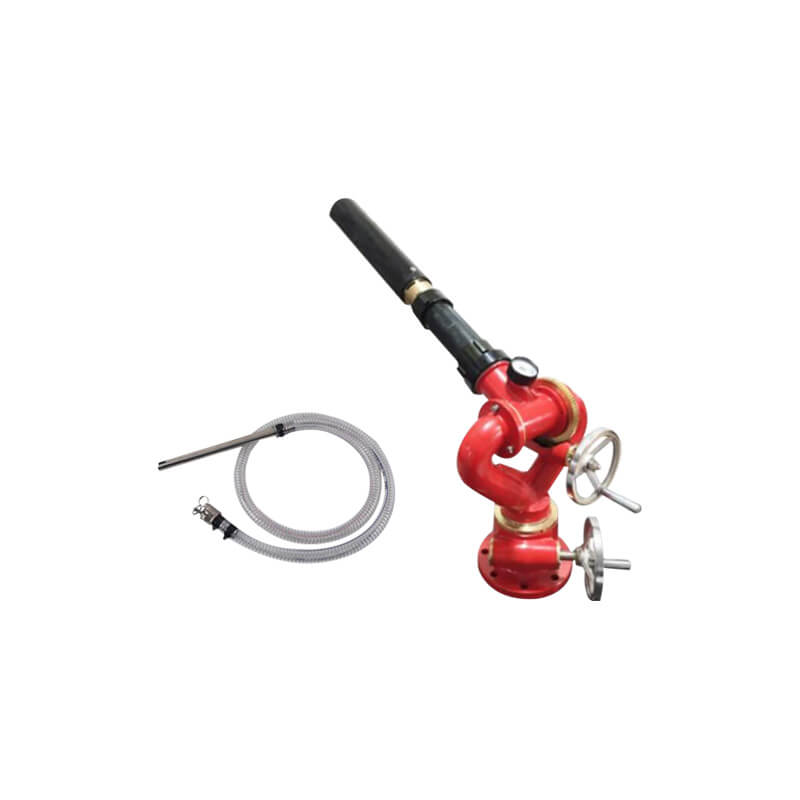

The Manual Operated Wheel Control Foam Monitor with double waterway and air-aspirating nozzle is engineered for high-capacity foam discharge with excellent reach and expansion. Designed for both fixed and vehicle-mounted applications, it offers smooth directional control via dual handwheels and a robust air-aspirating system for efficient fire suppression.
Key Features:
- Nozzle Type: Air-aspirating for enhanced foam performance
- Control: Dual handwheel operation for elevation and rotation
- Waterway: Double waterway design for higher flow efficiency
- Spray Pattern: Straight jet for long-range foam delivery
- Rotation: 360° horizontal for complete coverage
- Elevation Range: +90° upward and -45° downward
- Connection: Flanged as per ANSI Class 150, EN 1092 PN16, etc.
- Working Pressure: Up to 200 psi
- Surface Finish: Hard anodized or red FBE coating
- Standard Compliance: NFPA 11, UL 162, GB 19156
- Certification: ISO Certified
