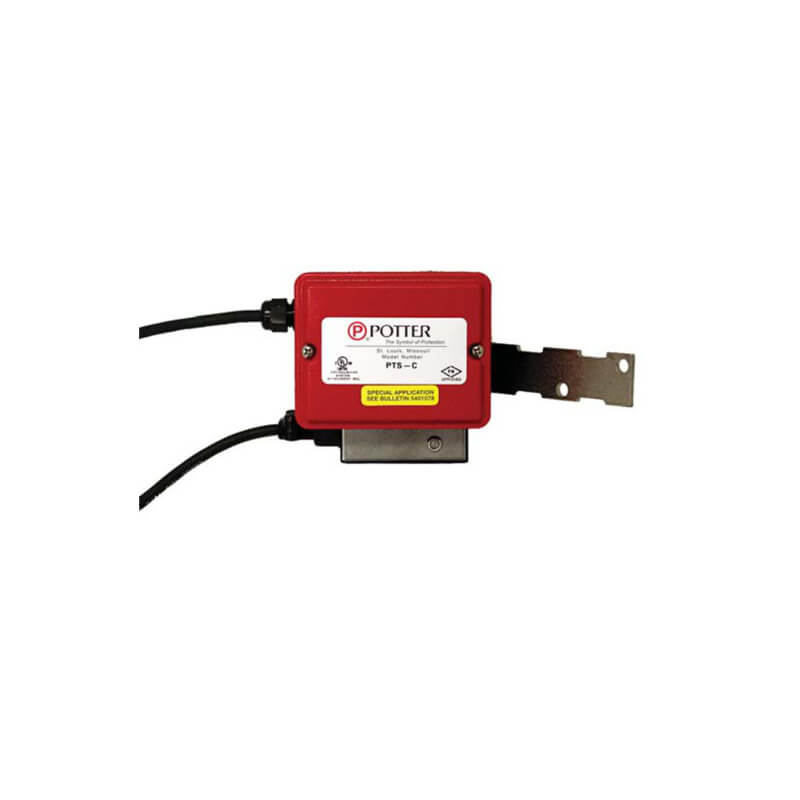

The Plug-Type Supervisory Switch is engineered to monitor control valves in fire sprinkler systems, especially non-rising stem (NRS) gate valves and other unique applications. When the valve is turned, the plug is pulled from the receptacle, signaling a change in status. Reinsertion is only possible by removing the cover with a special hex key, enhancing security and tamper resistance.
Key Features:
- Ideal for supervising NRS gate valves and non-standard installations
- Plug disconnection signals valve operation or tampering
- Plug cannot be reinserted without removing cover (hex key required)
- Certified: UL Listed / FM Approved
- Standards: NFPA 13, 13D, 13R, 72 compliant
- Materials: Durable PC (polycarbonate) housing, stainless steel bracket
- Contact Ratings:
- Plug: 100mA @ 28VDC/AC, 250mA @ 12VDC/AC
- Cover tamper switch: 250mA @ 28VDC/AC
- Temperature Range: -40°C to +60°C
- Finish: Corrosion-resistant for harsh environments
