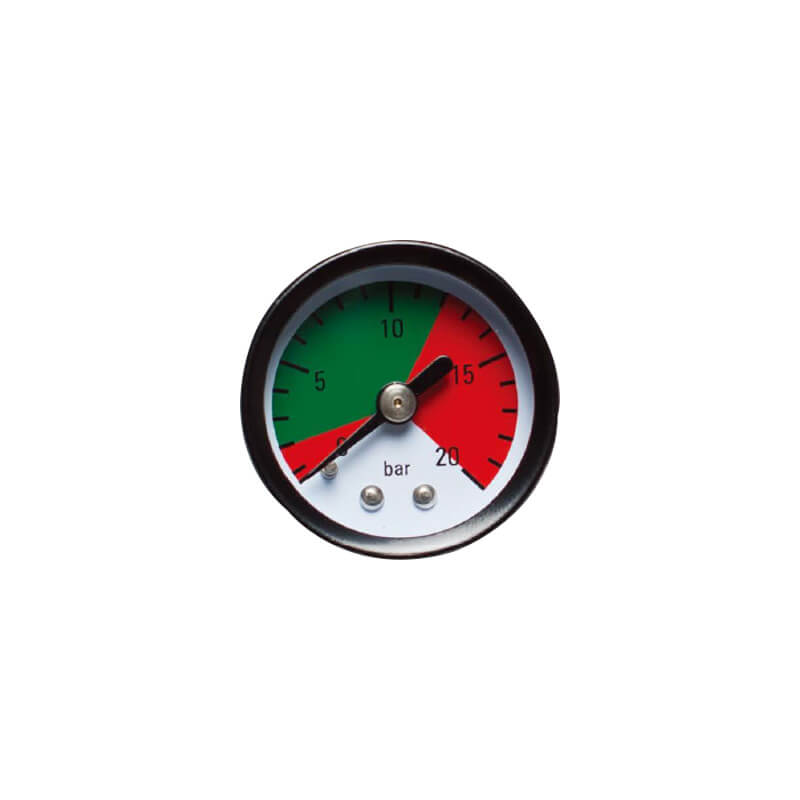

The Pressure Gauge is a precision instrument used to monitor and display the pressure of gases or liquids in a system. It plays a critical role in fire protection systems, water supply networks, HVAC systems, and industrial applications, ensuring safety and system performance by providing real-time pressure readings.
Available in a variety of pressure ranges, connection types, and dial sizes, this gauge is built for accuracy, durability, and ease of use, even in demanding environments.
Key Features:
Dial sizes typically range from 50 mm to 150 mm
Pressure ranges available: 0–2 bar to 0–400 bar (or psi/kPa equivalents)
Connection types: Bottom or back entry, 1/4″ or 1/2″ BSP/NPT thread
Case materials: Stainless steel, brass, or ABS plastic
Window: Tempered glass or polycarbonate for impact resistance
Options for glycerin-filled or dry type gauges
Accuracy class: Typically ±1.0% to ±2.5% F.S. depending on model
Suitable for use in fire hydrant systems, sprinklers, pump rooms, and control panels
Optional features: dual scale (bar/psi), color-coded zones, or protective rubber covers
