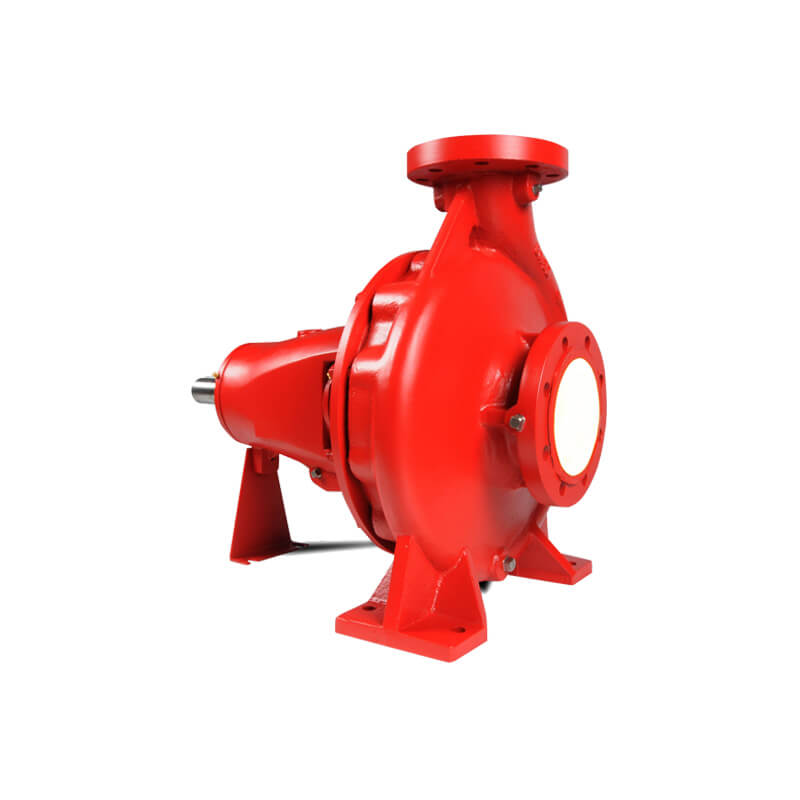

The end suction fire pump is a cost-effective centrifugal pump commonly used in fire protection systems. Featuring a single impeller and volute casing, it efficiently converts water velocity into pressure for effective discharge through the top outlet. Its compact design makes it ideal for applications with limited space.
Key Features:
- Economical and compact centrifugal fire pump
- Single impeller with volute casing for efficient pressure generation
- Suitable for small to mid-sized fire protection systems
- Available with electric motor or diesel engine drive
- Supplied with standard fire pump controller
- Certification: UL Listed / FM Approved
- Standard: NFPA 20 compliant
- Flow Range: 150 ~ 750 GPM
- Head Pressure: 40 ~ 151 PSI
- Coating: Fusion Bonded Epoxy (FBE) as per AWWA C550
