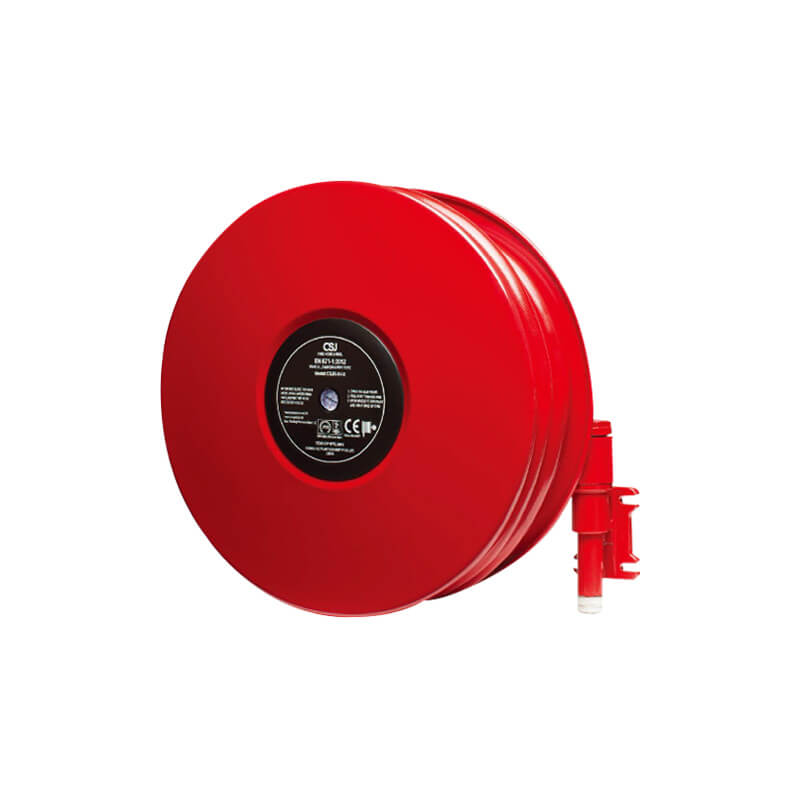

The Swinging Pipe Fire Hose Reel (Automatic) is a compact and efficient fire suppression solution designed for quick deployment and reliable operation in emergency situations. Connected directly to a pressurized water supply via a swinging inlet pipe, this hose reel automatically activates water flow upon unwinding, eliminating the need for manual valve operation.
Its pivoting design allows the reel to swing horizontally, ensuring optimal hose alignment and easy access, even in confined spaces. Ideal for commercial buildings, warehouses, schools, hospitals, and high-rise structures, it provides a consistent and immediate water stream for first-response firefighting.
Key Features:
Automatic operation—water flows instantly when the hose is pulled
Swinging inlet pipe design enables 180° horizontal movement for flexible installation
Standard sizes: 19mm (3/4″) or 25mm (1″) hose diameter
Hose lengths typically: 30m or 36m
Includes brass or stainless steel jet/spray nozzle
Durable construction with powder-coated steel drum and wall bracket
Inlet connection: 1″ BSP/NPT threaded or flanged
Certified to EN 671-1 and compliant with relevant fire safety standards
Optional features: cabinet housing, pressure gauge, signage, or lockable enclosure
