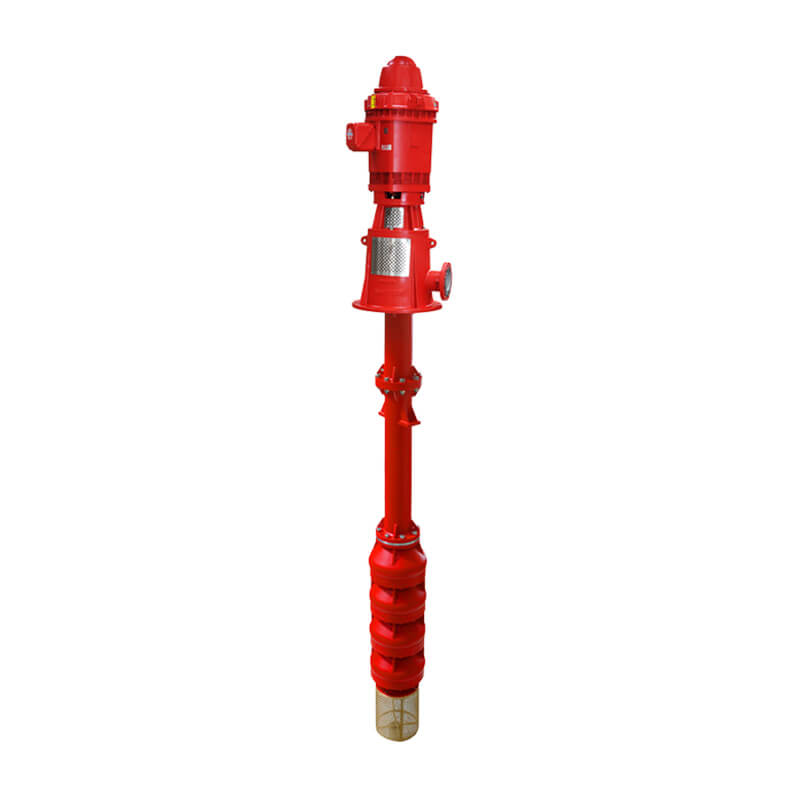

The vertical turbine fire pump is designed to draw water from deep wells or underground reservoirs. It uses a long vertical shaft connected to multiple impellers, where each impeller stage adds to the overall pump head. This makes it ideal for applications where the water source is below ground level.
Key Features:
- Designed for deep well or underground water sources
- Multi-stage impellers increase pump head with each stage
- Suitable for high-capacity and high-lift fire protection systems
- Available with electric motor or diesel engine drive
- Supplied with standard fire pump controller
- Certification: UL Listed / FM Approved
- Standard: NFPA 20 compliant
- Flow Range: 500 ~ 4000 GPM
- Head Pressure: 43 ~ 333 PSI
- Coating: Fusion Bonded Epoxy (FBE) as per AWWA C550
